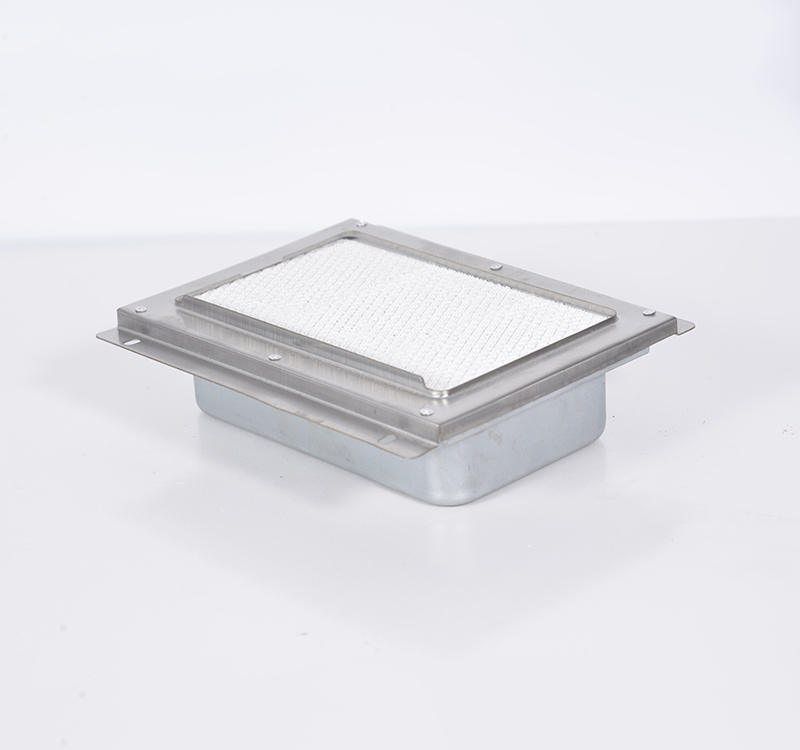

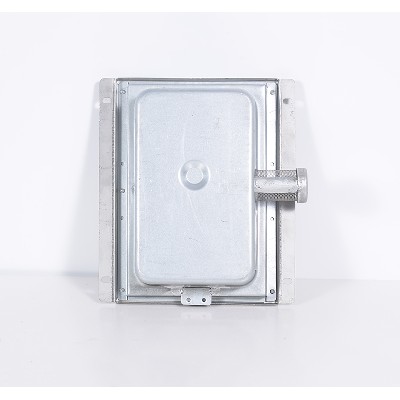

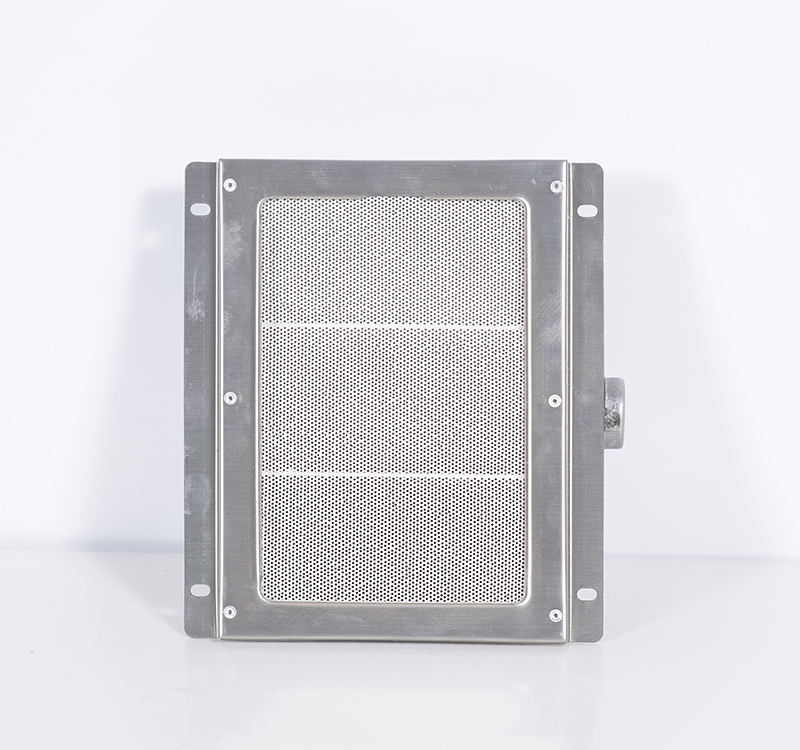

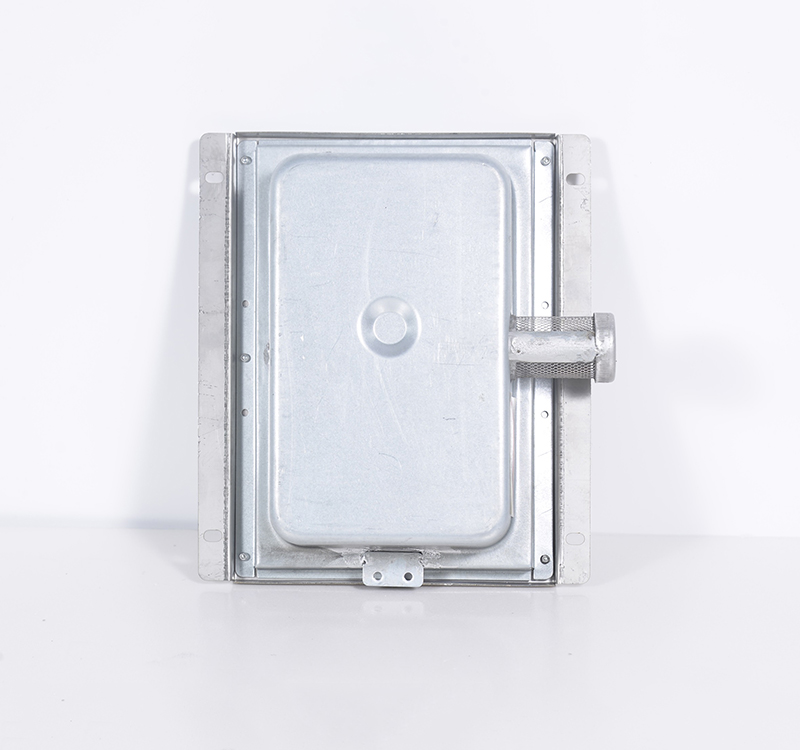

Infrared burner
2021-03-15 223
1. Name:Infrared burner
2. Model: hg536-001 (hl010 ceramic plate)
3. Specifications:
Body size: l 225 * w 203.5 * h 67
Shell size: l 212 * W 138 * h 55
Size of injection tube: diameter P32 * length 52 (the length can be customized according to customer requirements)
4. Power: 12000 BTU (3.5kw)
5. It is mainly used for: main furnace and side furnace of gas oven; gas heater, gas grill furnace, etc
-
05-28
Infrared furnace head manufacturer: what is ceramic infrared heater?
The ceramic infrared heater is composed of resistance thermal conductor embedded with appropriate ceramic materials. Because all of them are embedded in the ceramic, the energy generated by the thermal conductor can be transmitted to the surrounding materials, which can not only avoid overheating of the thermal conductor, but also extend its service life. The data used for embedded thermal conductors need to be insulated and have good absorption and radioactivity within the set range of infrared
-
05-28
How to install infrared ceramic chip for infrared burner manufacturer?
The bonding of infrared ceramic chips usually includes cleaning, drying, bonding, drying, sintering and other steps. 1. Tank cleaning. The tank which needs to replace ceramic chips is dirty, which will affect the quality of incineration and the firmness of bonding. It needs to be cleaned after full soaking (recommended time is 24 hours). It can be cleaned with steel ball, screw driver, toothbrush, test tube brush and other things.
